PickPilot

AI Robotic Picking Platform

Team C2-054 Camera Software Robot

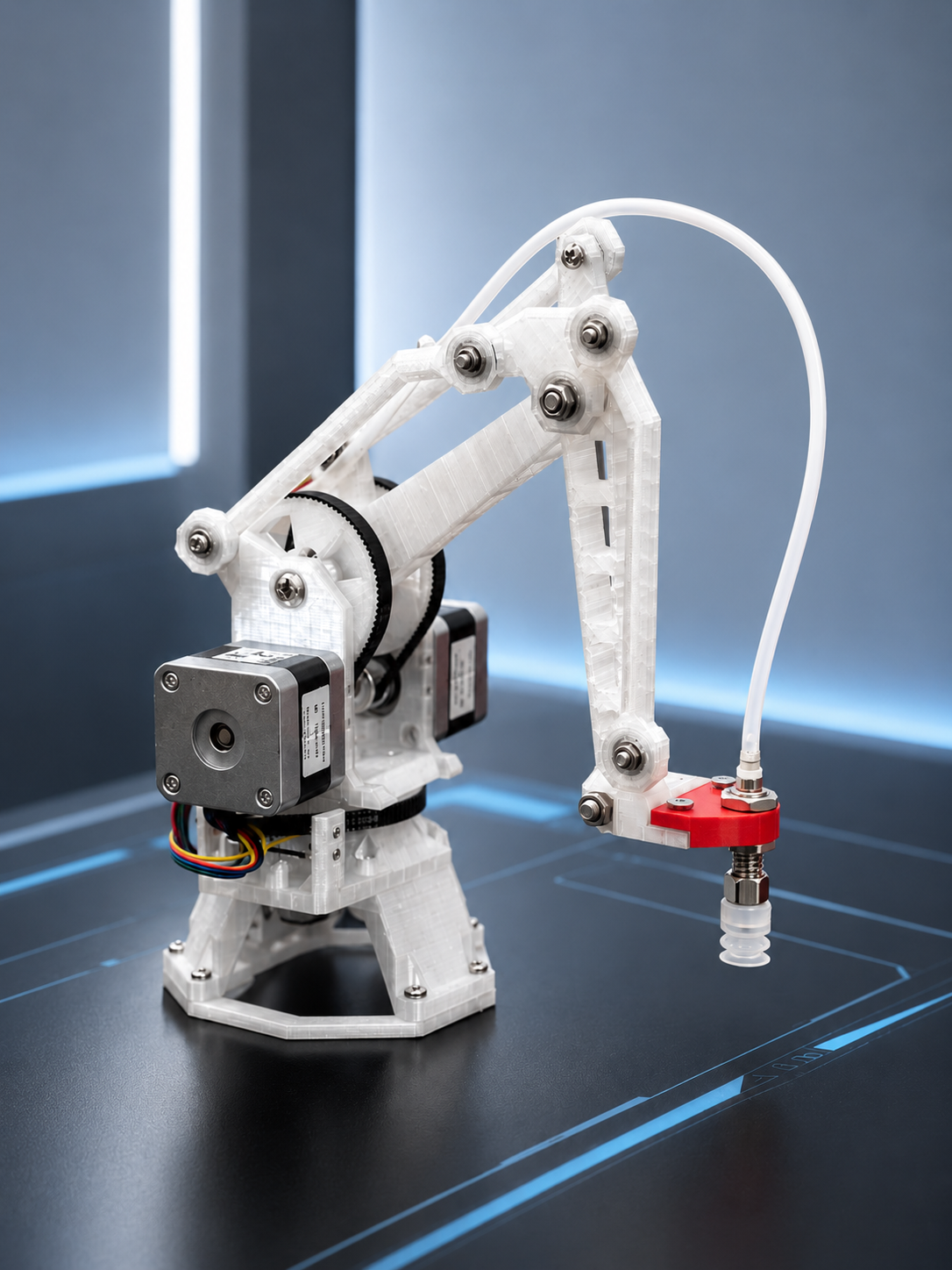

3DoF precision arm

Vacuum suction end-effector

Stepper-driven accuracy

The Problem

Seeing is not picking.

A picking robot needs vision, decisions, motion, and feedback in one loop.

Object changes Camera sees it, but the robot still needs a usable target.

Manual setup Operators still need to connect camera, software, and motion.

Broken loop If the pick fails, the system must know what to improve.

PickPilot goal

Turn a camera view into a repeatable pick and sort workflow. PickPilot mascot guide

Market Gap

Current tools are fragmented.

Most options solve one part. PickPilot connects the loop.

Approach	Strong at	Missing link
Manual sorting	Flexible judgment	Slow and inconsistent
Camera-only detection	Finding objects	No physical action
Robot programming	Repeatable motion	Hard to adapt
Simulation	Safe testing	Disconnected from hardware
PickPilot	Vision, planning, robot action	One integrated workflow

Product Flow

One workflow from camera to sorting.

The audience only needs to understand what happens from seeing an object to moving the arm.

IPHONE_CAMERA_RAW LTE / 98%

YOLO: BLUE (95%)

YOLO: RED (98%)

YOLO: GREEN (92%)

YOLO: WHITE (96%)

TARGET DISTANCE (Z): 471 mm

See Objects

Decide Pick point

Move Robot arm

Sort Result

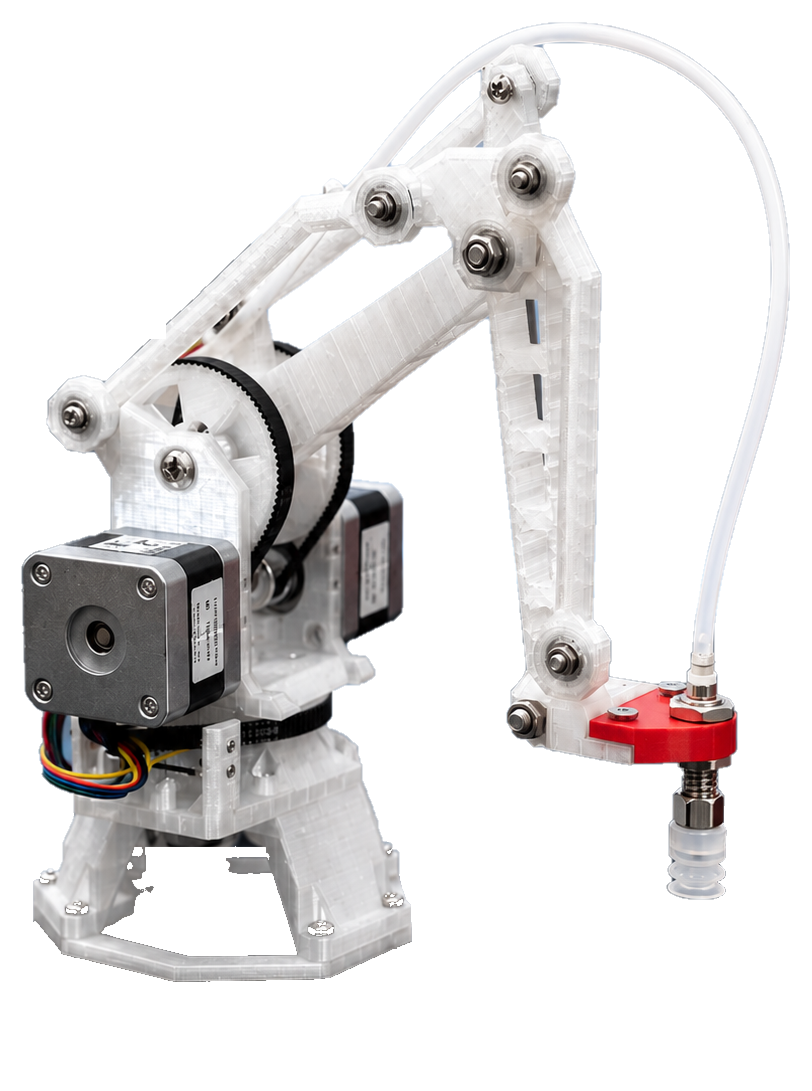

3DoF suction arm

Live Proof

Built and connected.

Four layers working together in one physical loop.

Vision iOS Vision

Detects colored objects on device.

Control Mission Control

Operator console for robot workflow.

Robot ESP32 Controller

Sends motion and suction commands.

Hardware 3DoF Suction Arm

Physical pick-and-place prototype.

Vacuum suction

3DoF arm joints

Stepper motors

BUSINESS PATH

From lab prototypes to practical automation.

PickPilot grows from academic experiments into deployable industrial solutions.

01

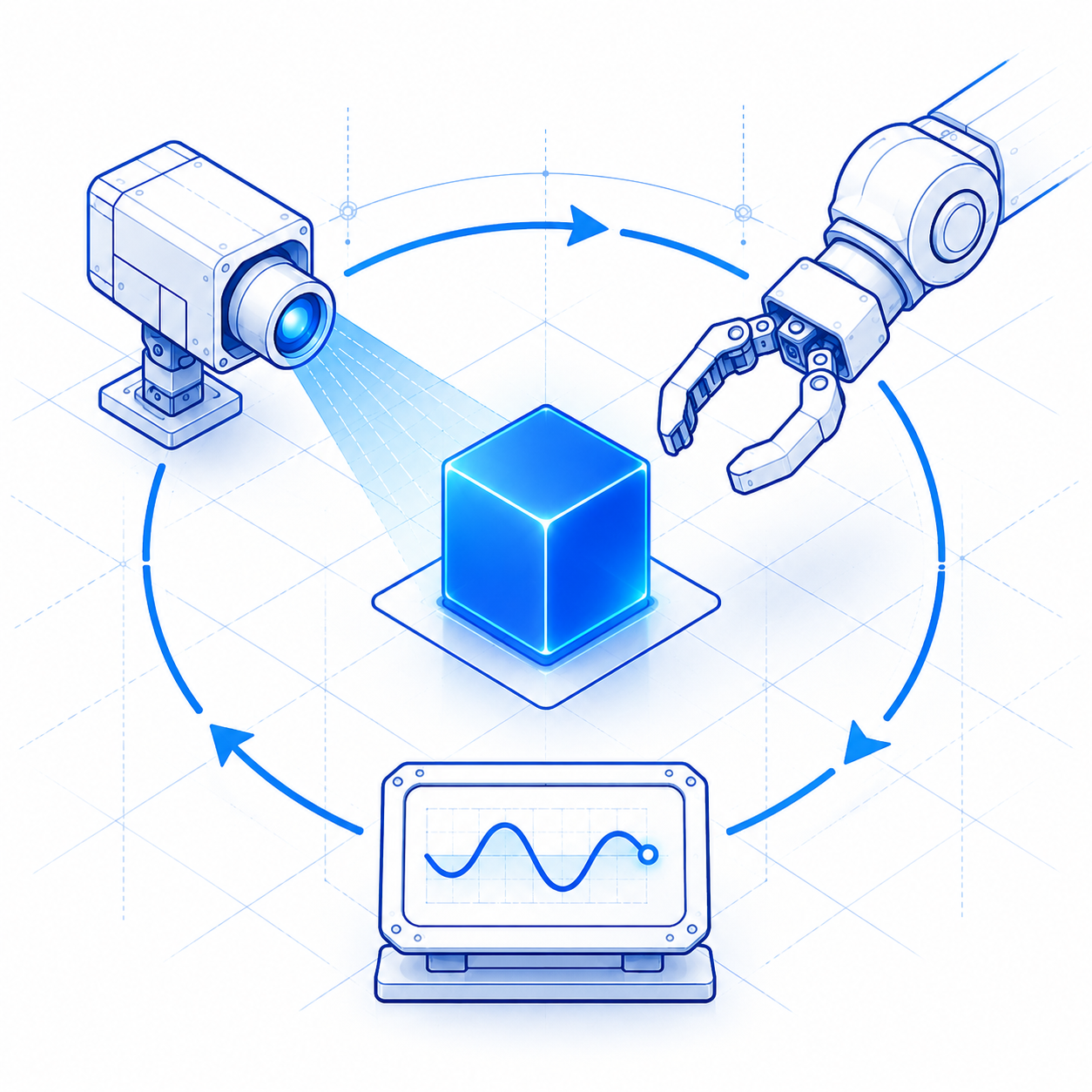

ACADEMIA

Education
Labs.

Teach perception & robotics
with a tangible system.

02

INNOVATION

Automation
Teams.

Rapidly prototype picking
before heavy investment.

03

INDUSTRY

Sorting
Stations.

Upgrade manual sorting
to autonomous lines.

04

SCALE
PARTNERS

Robotics
Integrators.

Deliver proven vision-to-action
solutions to clients.

Our Vision

From object detection to real robot action — PickPilot is the loop between them.

NOW Vision & robot prototype

NEXT Reliable feedback & repeatable pick tasks

FUTURE Robotic picking assistant for small automation teams
